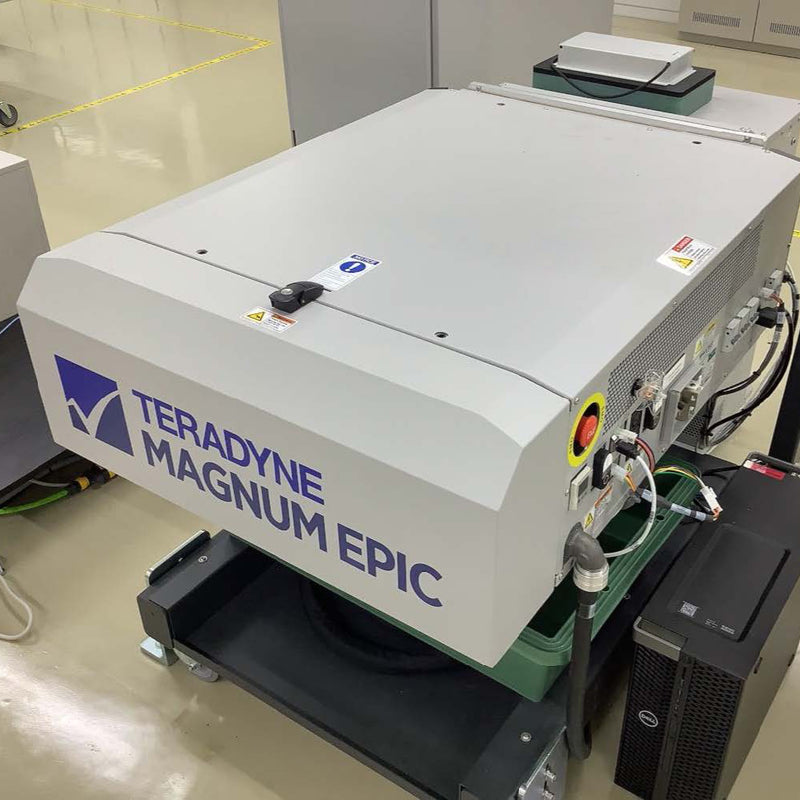

Teradyne / Nextest Magnum EPIC EV Tester
Teradyne / Nextest Magnum EPIC EV Tester
Teradyne / Nextest Magnum EPIC EV Tester
Teradyne / Nextest Magnum EPIC EV Tester
Teradyne / Nextest Magnum EPIC EV Tester

Teradyne / Nextest Magnum EPIC EV Tester

Asset #: 158720

Make: Teradyne / Nextest

Model: Magnum EPIC EV

Last Confirm Date: September 25, 2026

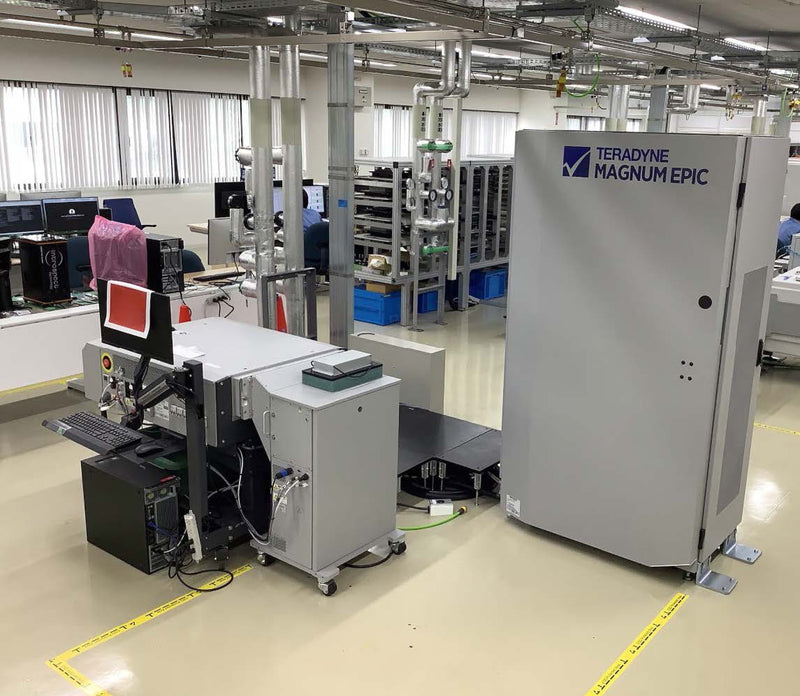

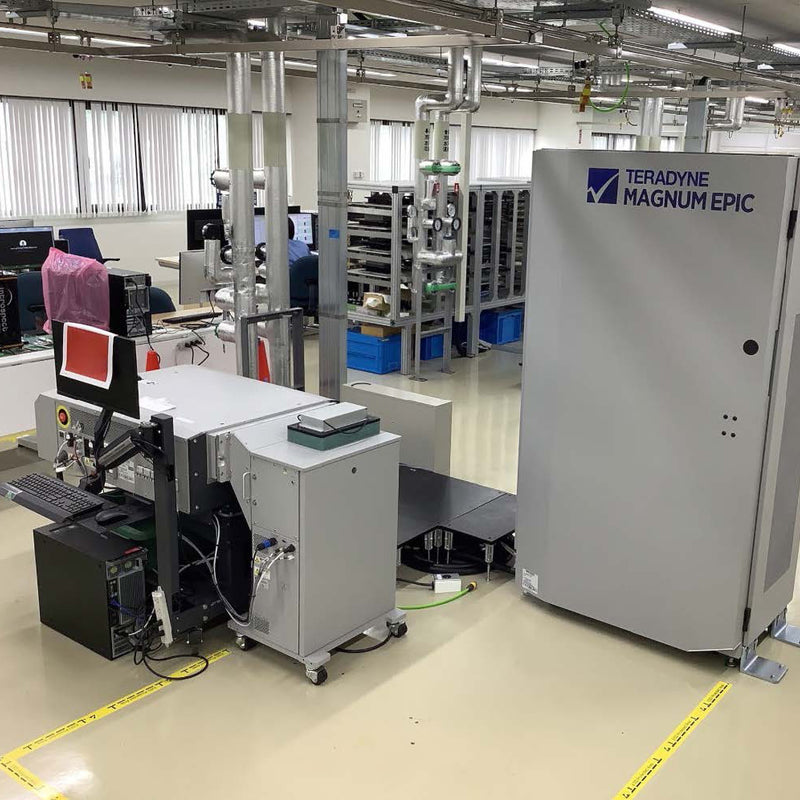

Teradyne / Nextest Magnum EPIC EV Tester

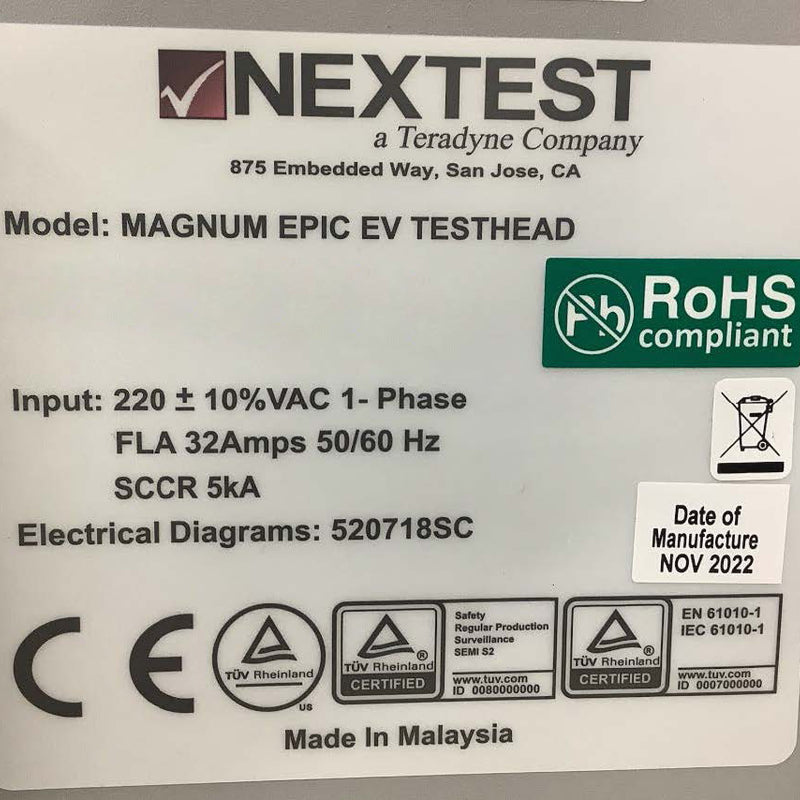

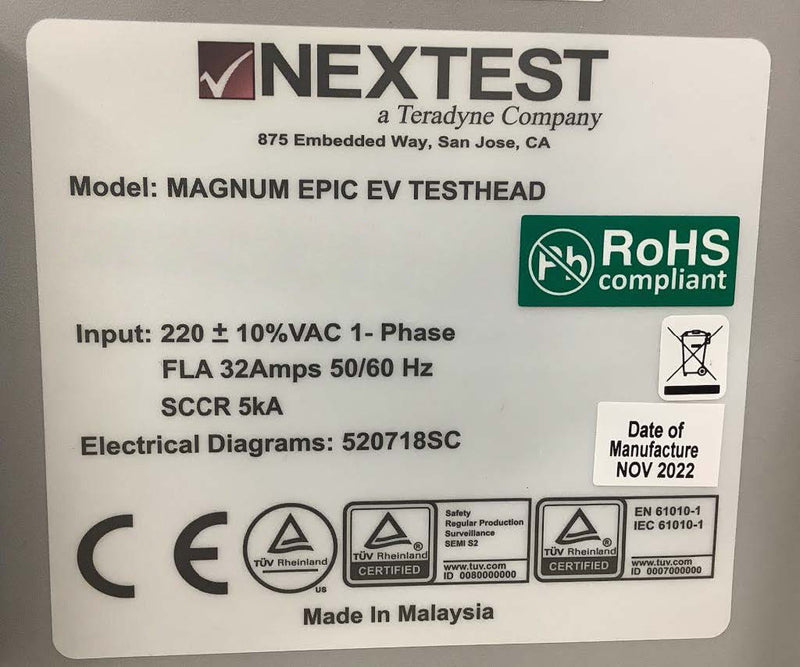

- 50/60 Hz
- Single Phase
- 220 VAC

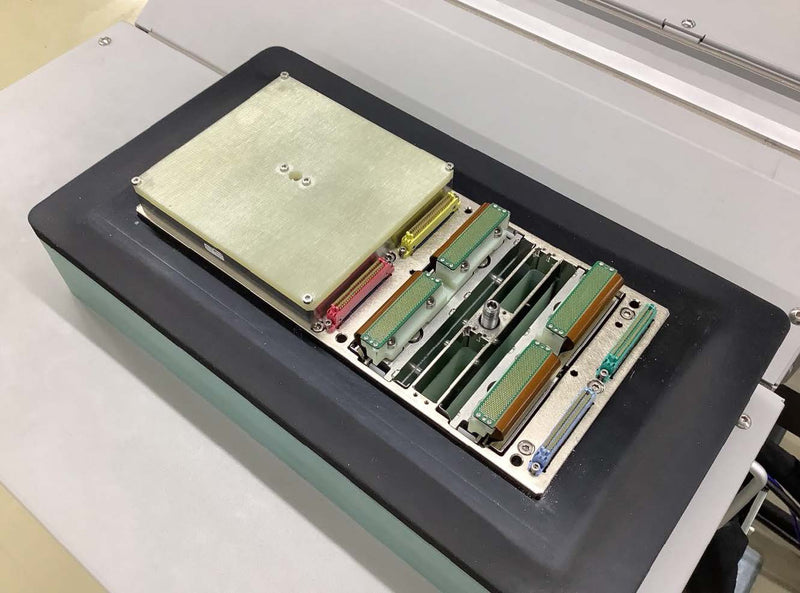

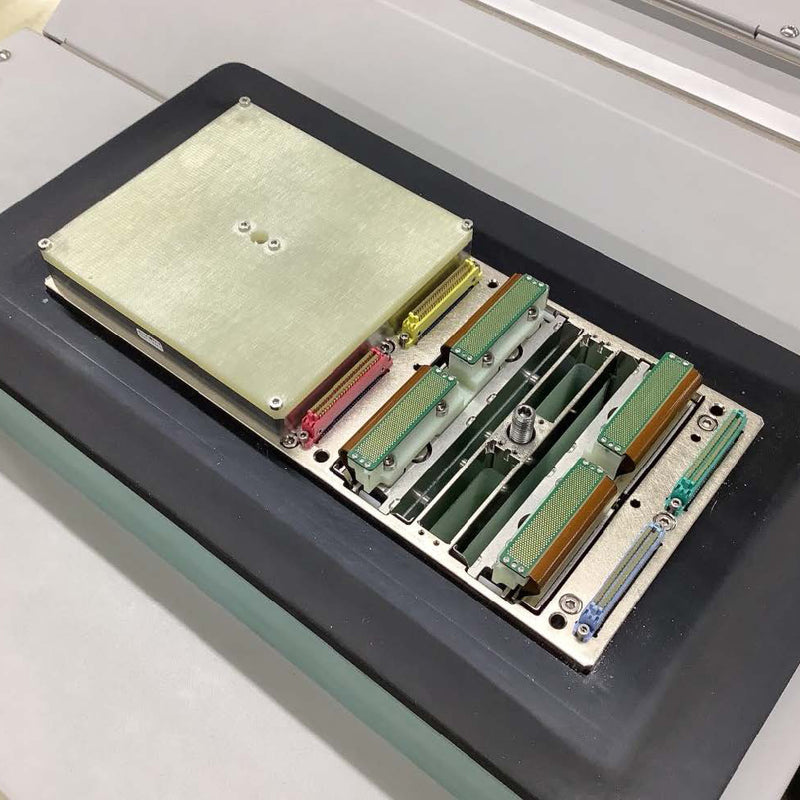

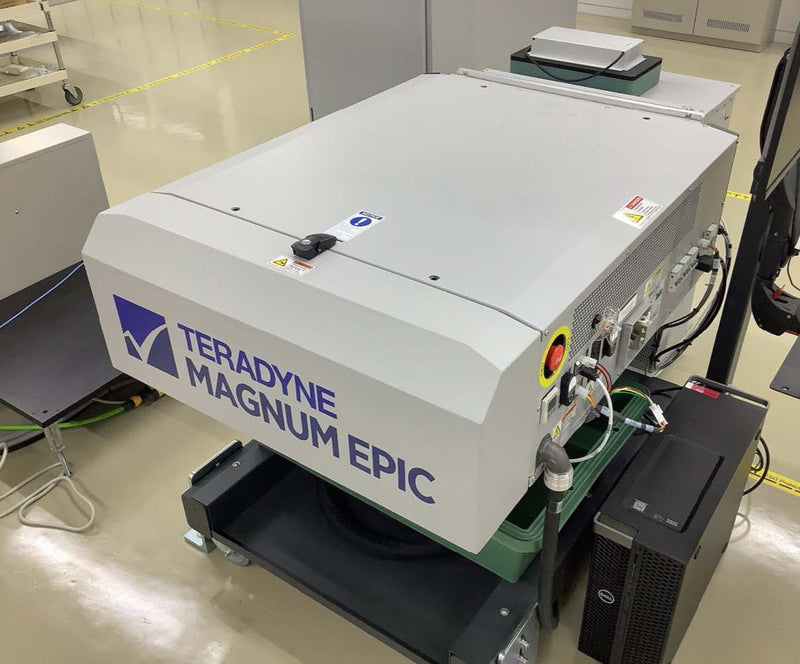

- Includes Test Head, MTUs, Load Board / DSA
- Calibration Certificate Available (Dec. 2025)
- Software: Nextest h635_Beta7_9GPlus_240514,OS image v9
- Pn Count: 1,344 (4 MTUs x 336)
Boards:
- HSBH
- HSMBRB_1
- HSMBRB_4
- DPH_1 (DPS)
- DP 4 FSER_1 (DP)
- BIB
- APB
- EBM
- SPC
Pin Electronics / Power:
- PE_HSM Chips: 24 total (ID f111), 12 per HSMB
- DPS: 32 AD5560 on DPH + 32 on DP
- PMU: 5 Ranges, 5 µA to 20 mA
- Power Supply: DOD 229 B 410077 W (assy 516109 rev 15)
Computers:
- Host PC: Dell Precision 5830, Xeon W-2235, 16 GB, Windows Server 2019
- Site Controller: Xeon E3-127 v5, `8 GB, Windows embedded Standard 7
- Interface DSA: UDDHC
Test History:
- Diagnostics: Weekly SystemDiag + HSMBDiag, Jan 7 to Apr 17, 2026; all pass
- Calibrations: Full sets Feb 4, Apr 14, Apr 17, 2026; all pass
- Cal Data Age: HSM/DPH/DP4 VCAL Apr 2026; Rout, PMU20mA, RAK from 2022
- Certificate: Teradyne Japan, Dec 12, 2025 (KY-MIC121225-1); all in spec, NIST-traceable
2022 Vintage
