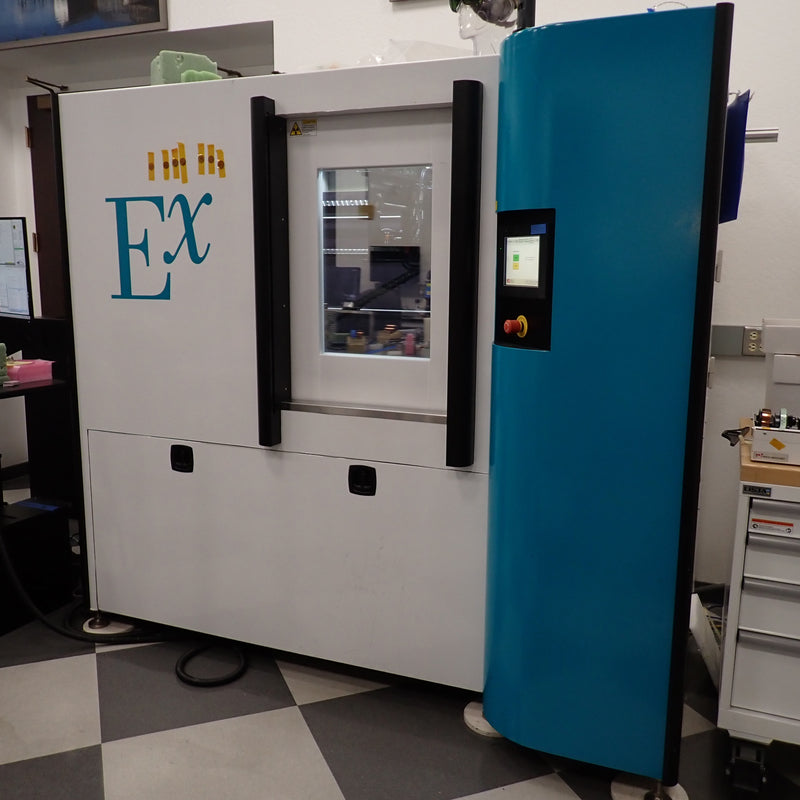

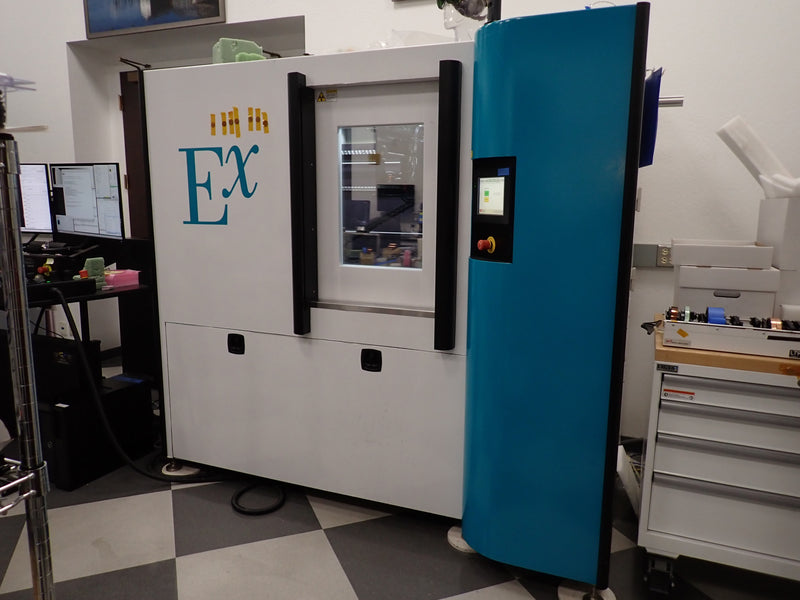

NSI X 50 CT Scanner
- Radiation Enclosure 225 kV

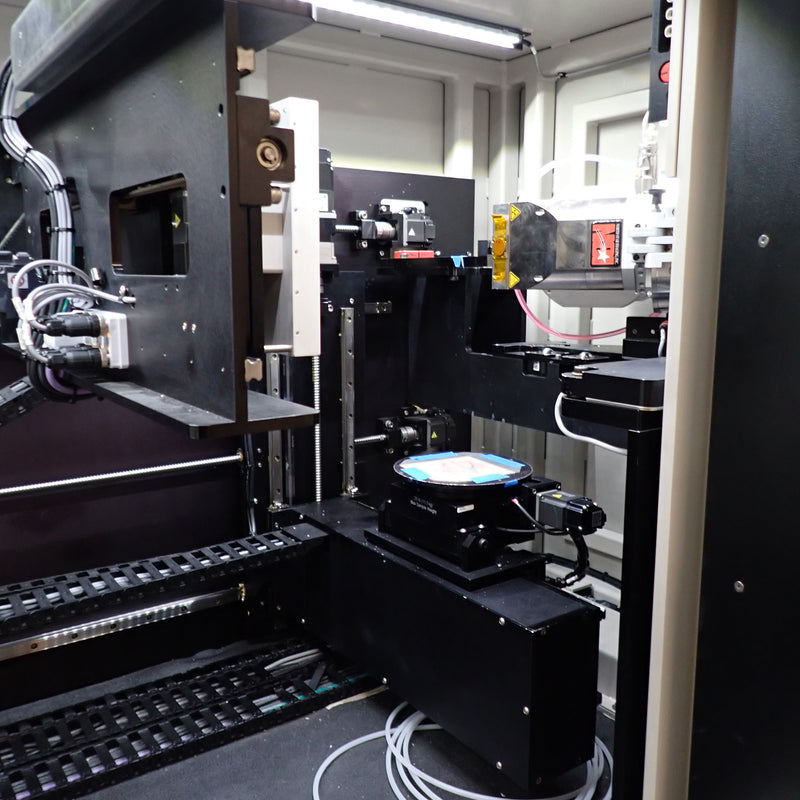

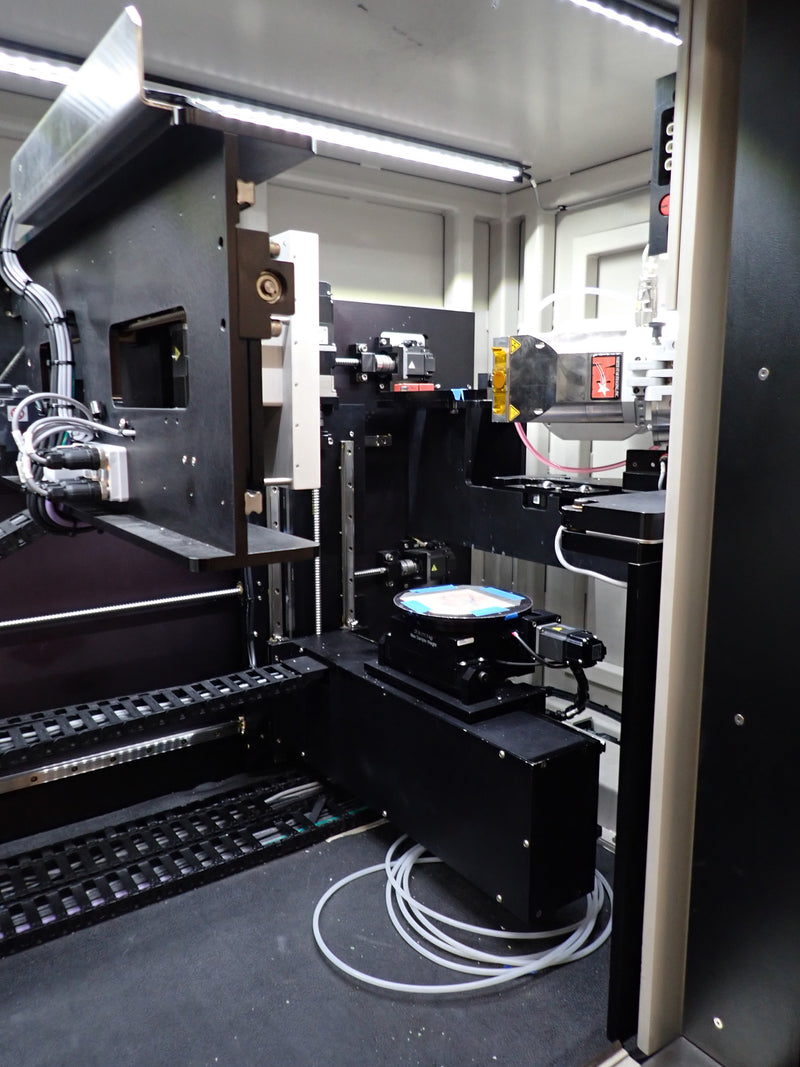

- 6-Axis Motorized Controlled Manipulator
- X-Ray Tube: Advance Fixturing for the Dual Head Tube
- efX CT 4 G Ultimate Reconstruction Workstation
- VorteX: Hardware and efX Module
-MosaiX & Subpix: Hardware & efX Software Mosules
- X-View Detector Qualification Package
- 4D Computed Tomography Module
- Copper Filter Kit
- Upgrade Manipulators to Programmable CNC Motion control (Includes additional 30" Monitor)
Microfocus 225kV Dual Head:
- Easy to use open demountable Dual Head x-ray tube

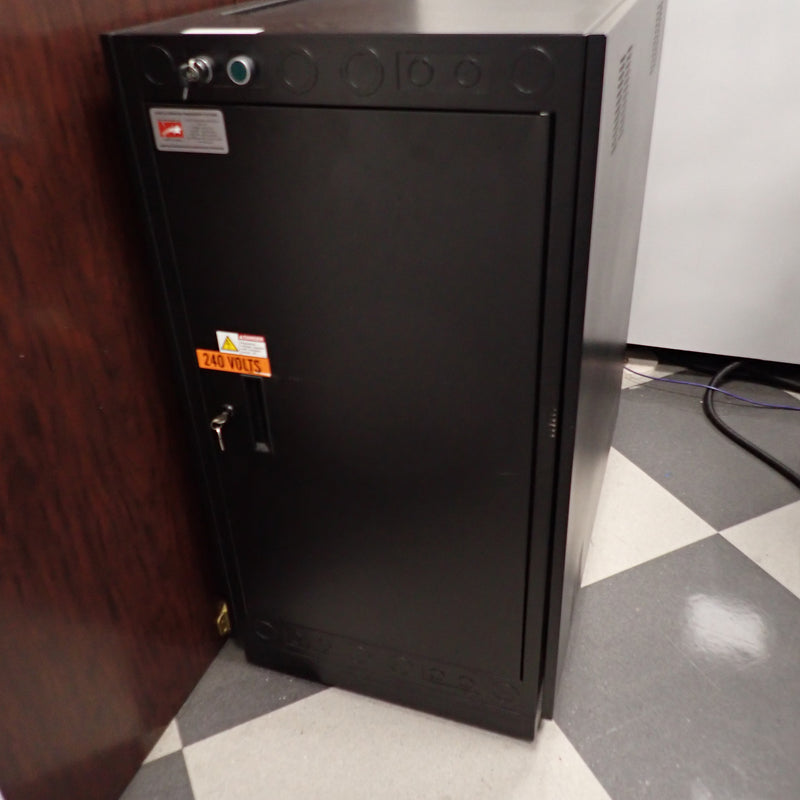

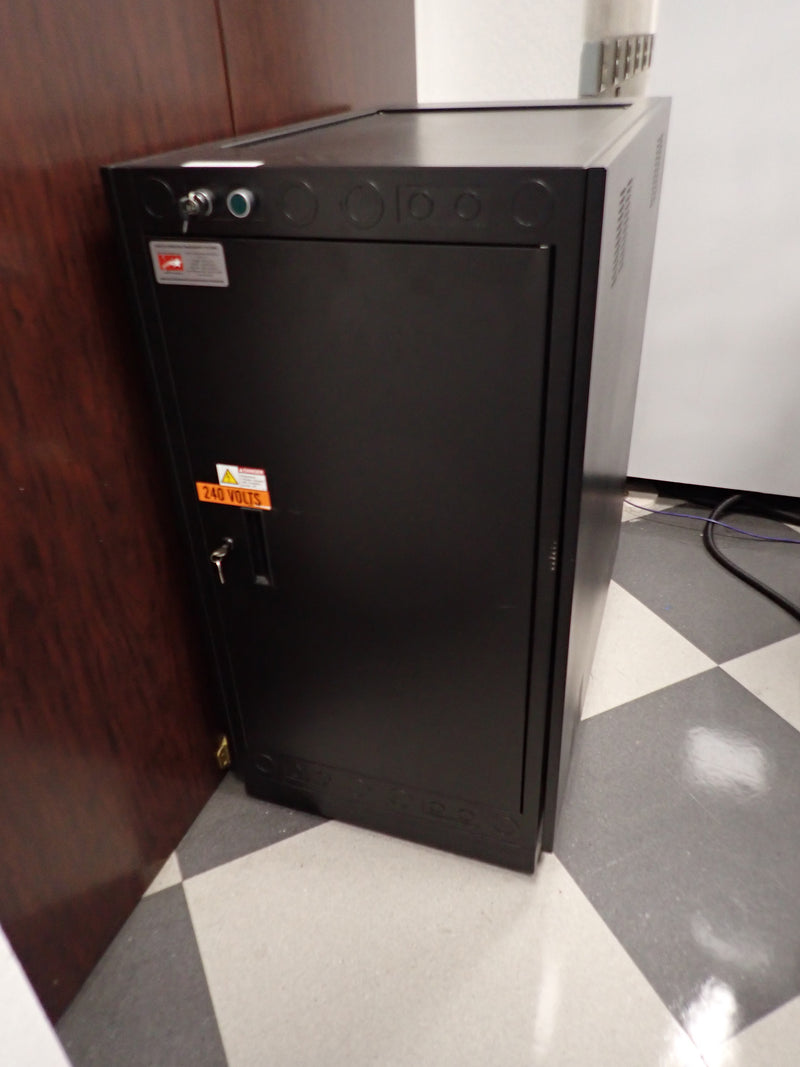

- High voltage generator
- Vacuum system
- X-View Control software
- Cable and hose set
- Water cooling for directional head
- Exchangeable transmission and directional tube heads
X-Ray Tube Modes
Directional Head Configuration:
- Microfocus mode
- High-power mode
- 20-225kV, 50-3000uA, up to 320W tube power
Transmission Head Configuration:
- Nanofocus mode, detail detectability <0.5 micron
- Microfocus mode
- High-power mode
- Max 80W tube power

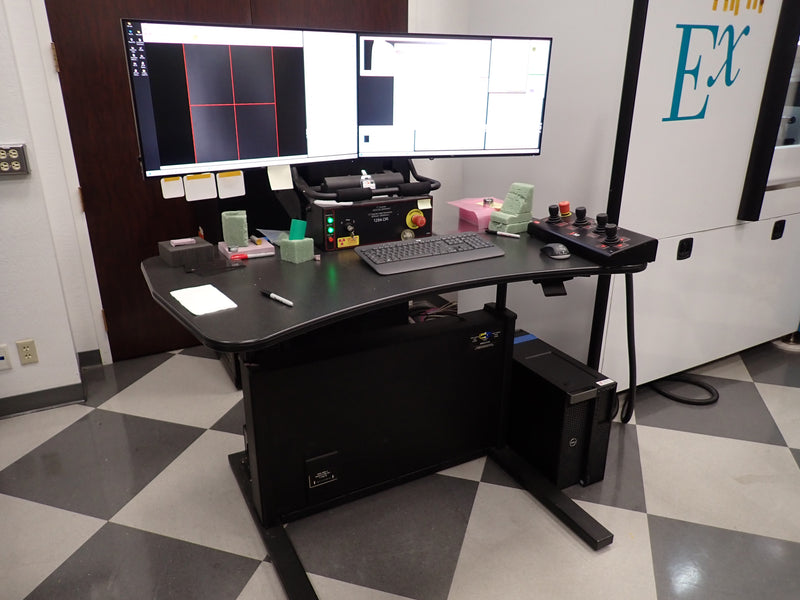

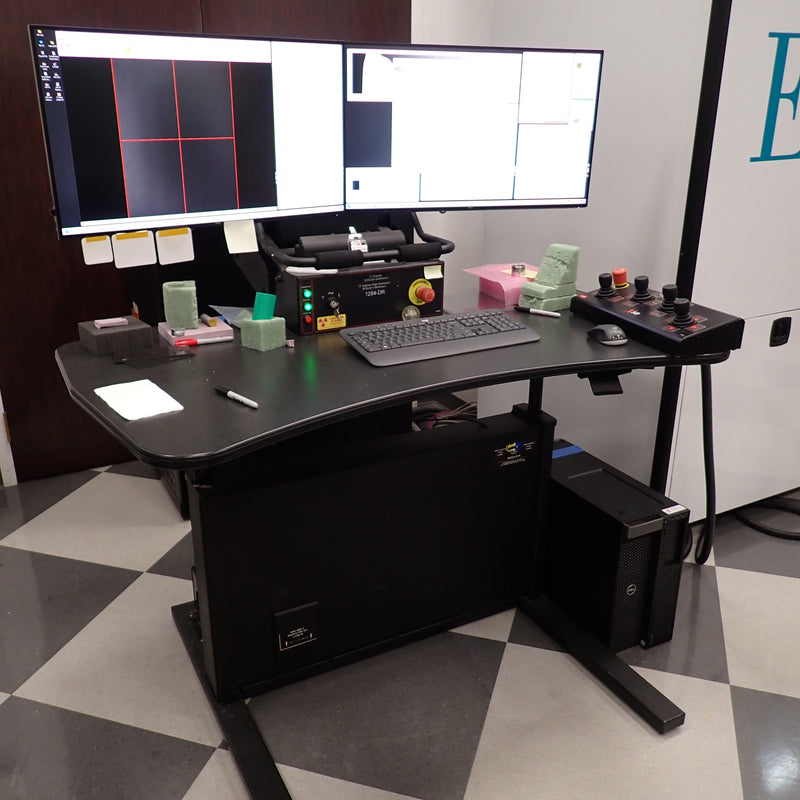

X-Ray Control Unit:
- Workstation with Windows operating system
- Automatic tube warm-up … High voltage, filament current
- Automatic focusing, electron beam alignment and target loading control
- Spare Parts and Service Kit
X-Ray Detecor
Varian Paxscan 2520DX:
- 8” x 10” (203mm x 254mm) image area
- Premium CT Grade (best quality)
- Cesium Scintillator (best contrast)
- 127 micron pixel pitch. 1536x1920 pixels (approx. 3 Megapixels)
- 16 bit resolution
- 30 fps (2x2 pixel binning) image acquisition: 12.5 fps at full resolution
- Tungsten shielded to 225kV (increased lifetime)

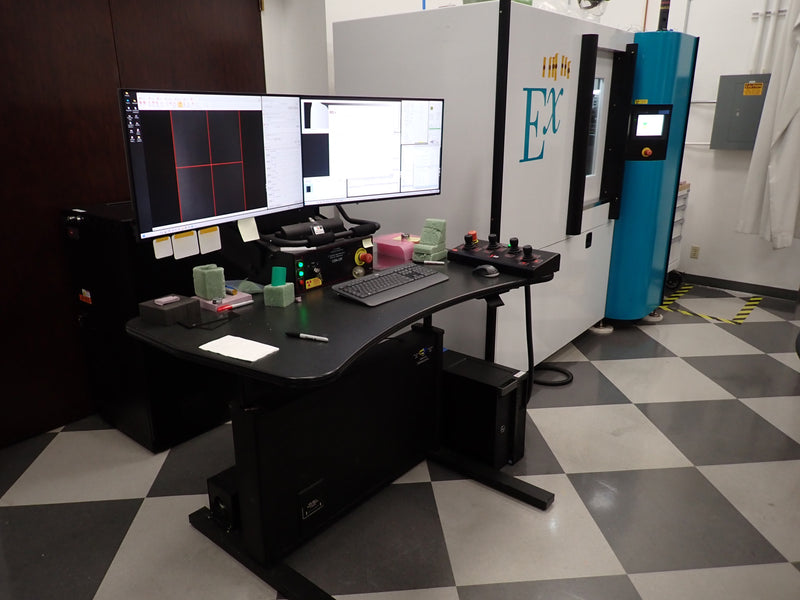

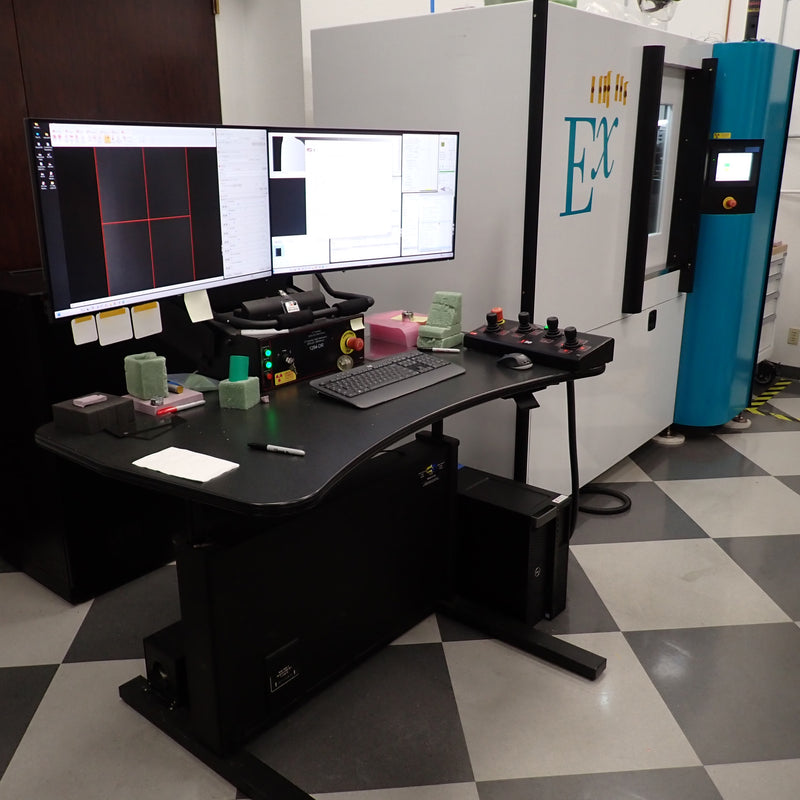

Software and Workstations

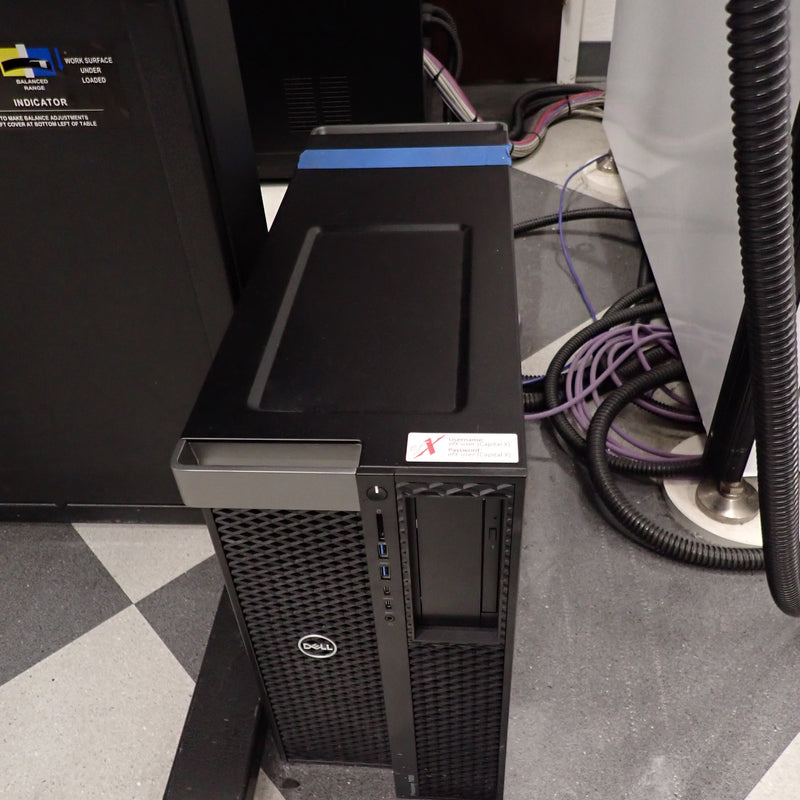

efX-DR Worksation:
- Windows® Operating System
- Six-Core Intel® Xeon® Processor
- 8 GB RAM
- 3TB of Data Storage in RAID 0 Configuration
- DVD+/-RW Drive
- 10/100/1000 Network Interface
- NVidia High Performance Display Adaptor
- 30” (762mm) 4 Mega Pixel Color Display
- Wireless Keyboard and Mouse
efX-DR Software:
High performance image analysis system with a comprehensive set of image analysis tools
- Windows® based (Compatible with Windows 7 or higher)
- Non-proprietary image storage format
- Multiple Windows interface
- High performance image processing and measurement functions utilizing GPU technology
- Automatic parallelization for systems with multiple CPU’s and GPU’s
- Live Imaging up to 30 frames per second
- Live Averaging, Live Histogram, Live line Profile, Live Rotation between portrait and landscape modes
- Live Measurements with 1 pixel resolution
- Live image gain/offset calibration and defective pixel correction
- Automatic creation of Technique sheet for operator record
- Capture video into AVI files
- Supports digital flat panel detectors, LDA’s and digital/analog cameras at 8, 10, 12 and 16 bits
- Read and store images in TIFF 32 bit / 16 bit / 8 bit, BMP, JPEG, RAW
- Seamless integration with efX-CT software
efX0DR CT Acquisition Module
Provides automated CT acquisition capabilities for efX-DR.
- Capable of CT acquisition up to 10,000 angle steps
-Technique sheet creator for operator record.
- Monitors x-ray performance and will pause the CT scan if x-ray interruption is detected
Fast CT Acquisition Module
- Module included in the efX-DR acquisition software
- Allows continuous fast CT acquisition of projections for fast CT scans
(from 5 seconds to minutes for thousands of projections)

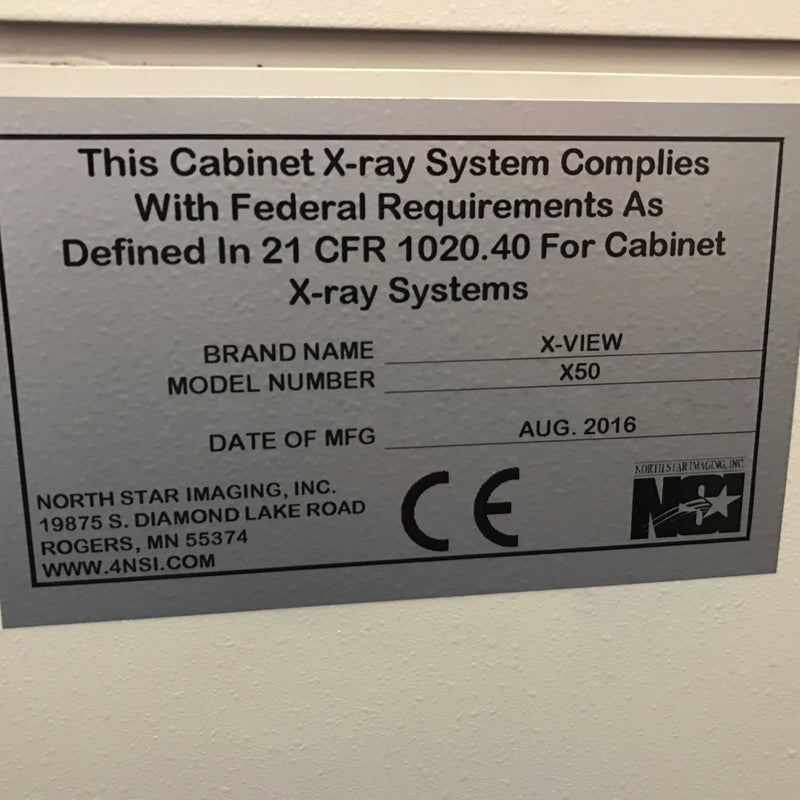

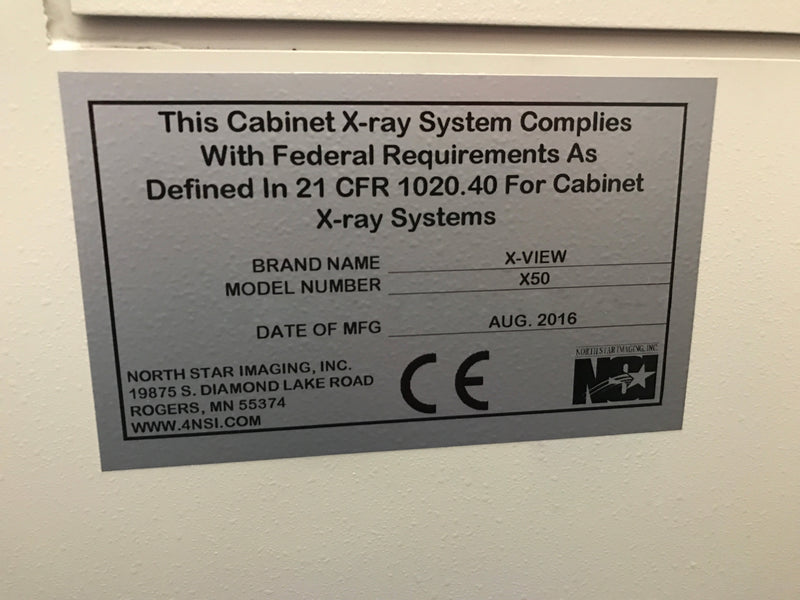

2016 Vintage
