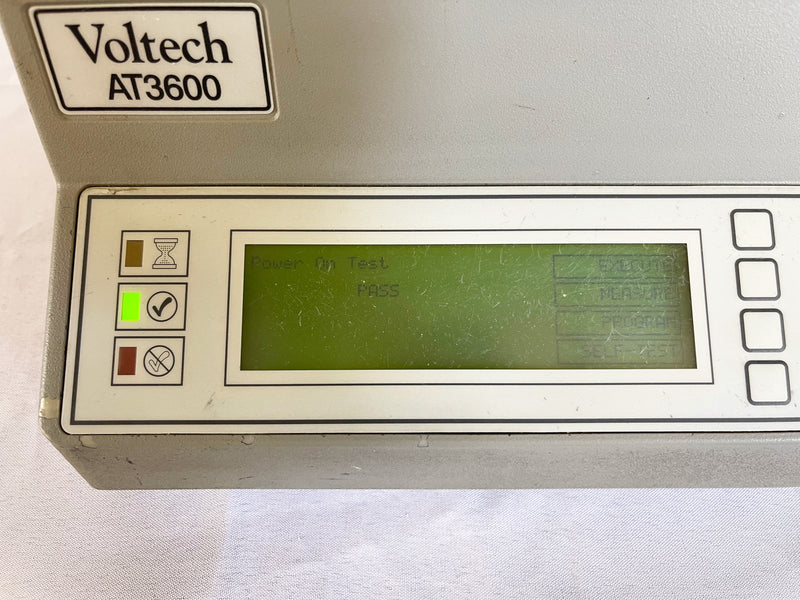

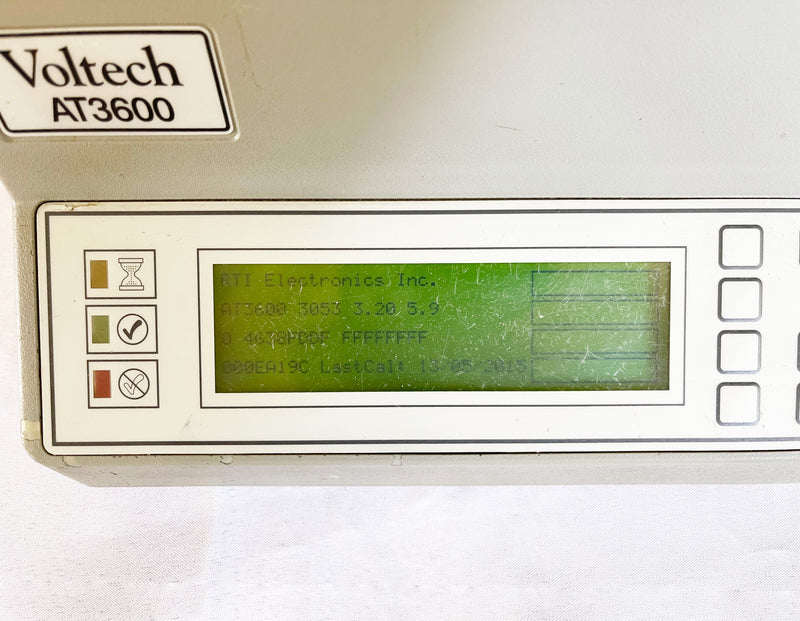

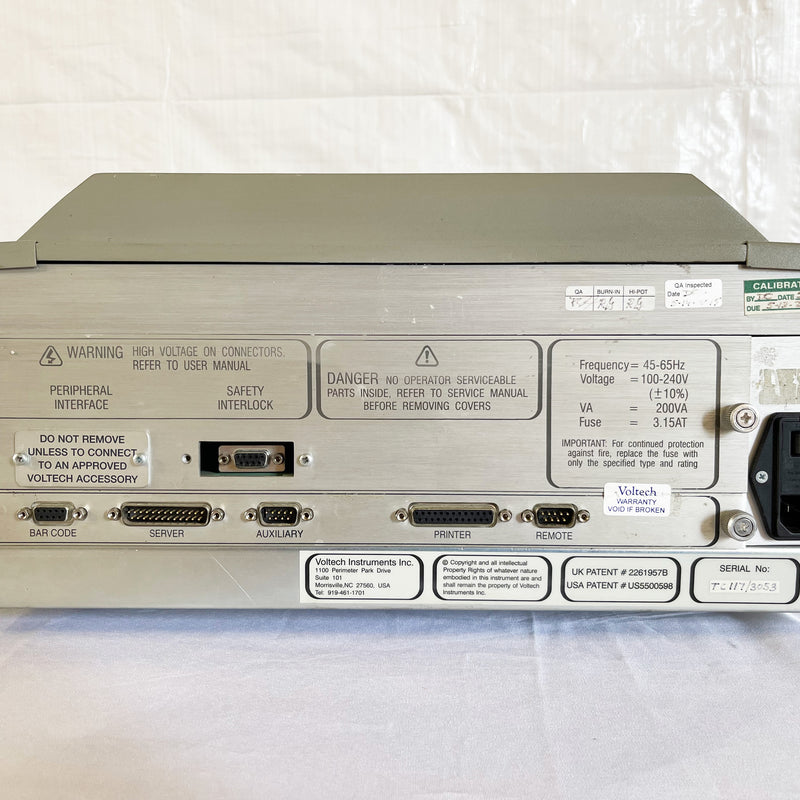

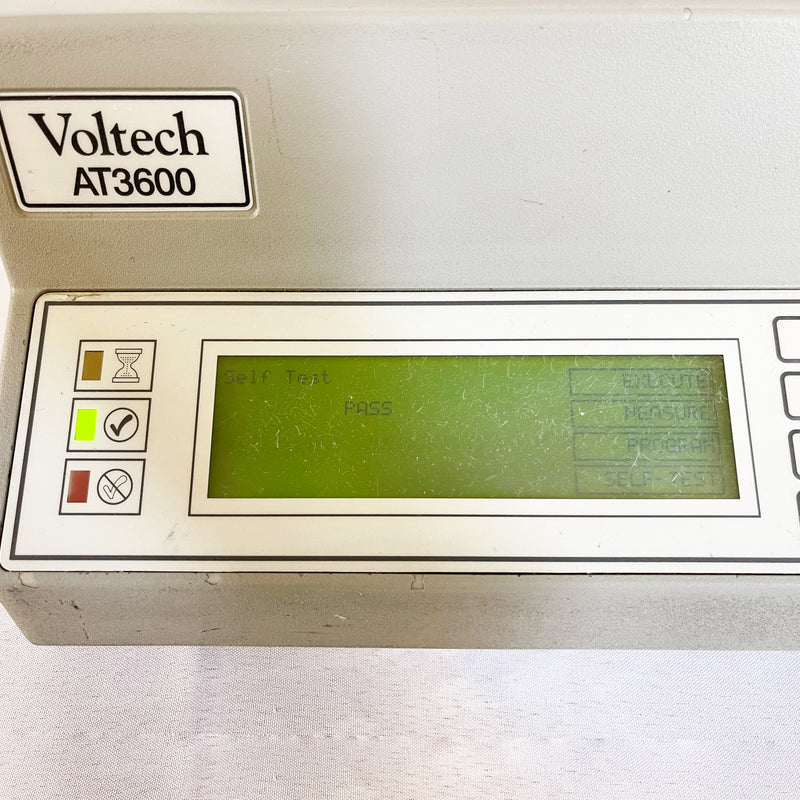

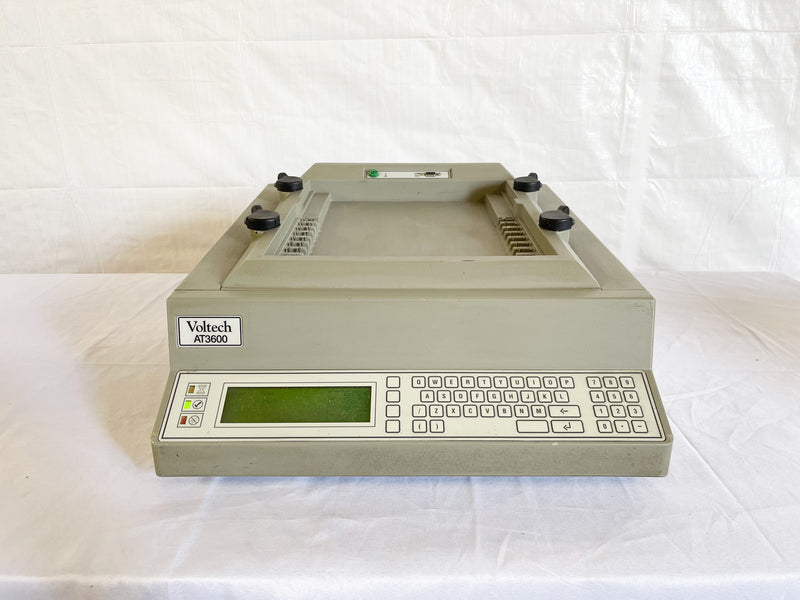

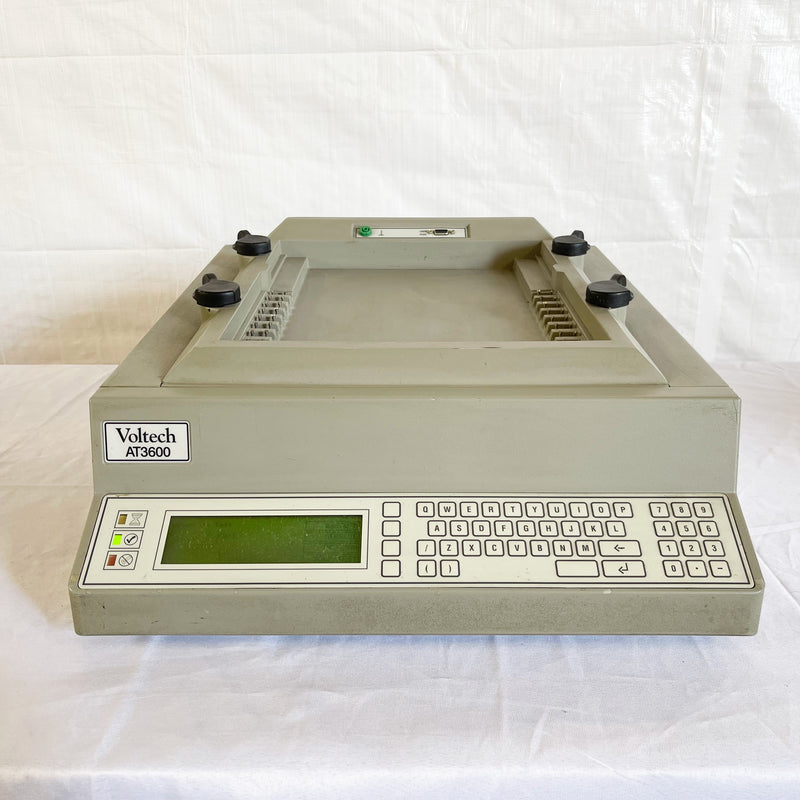

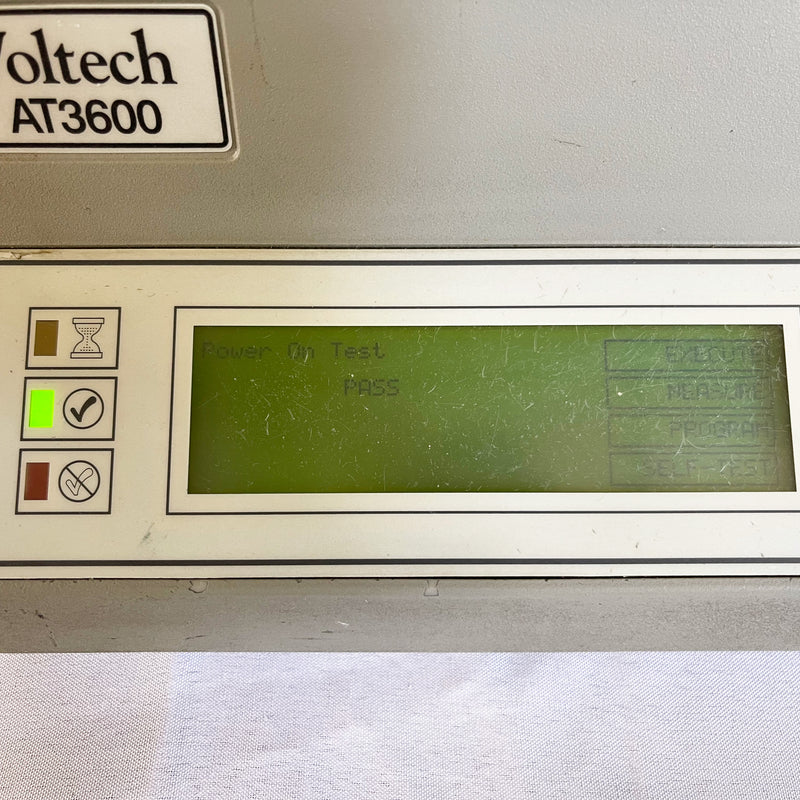

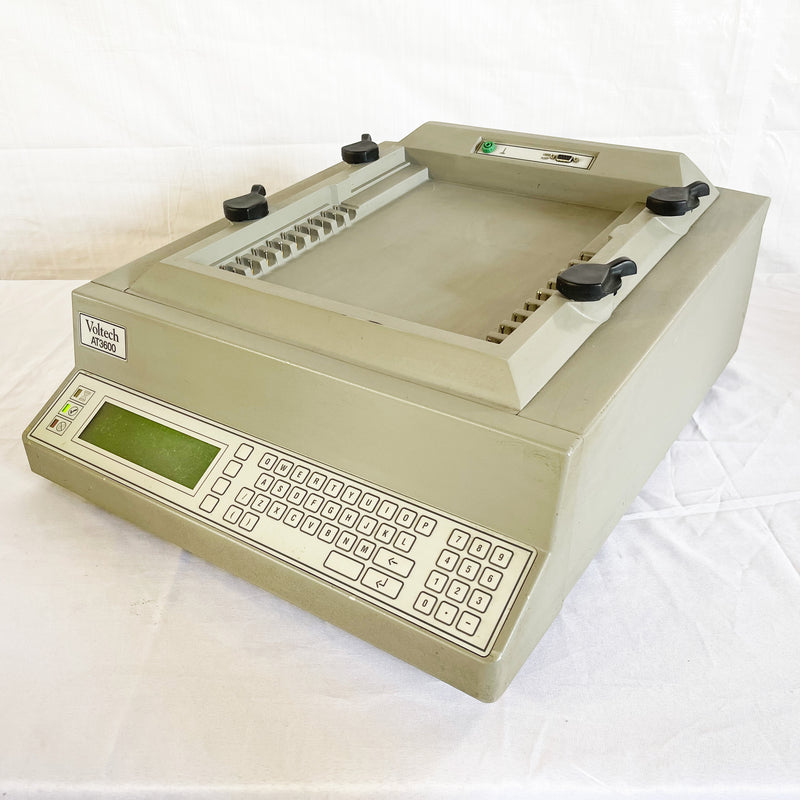

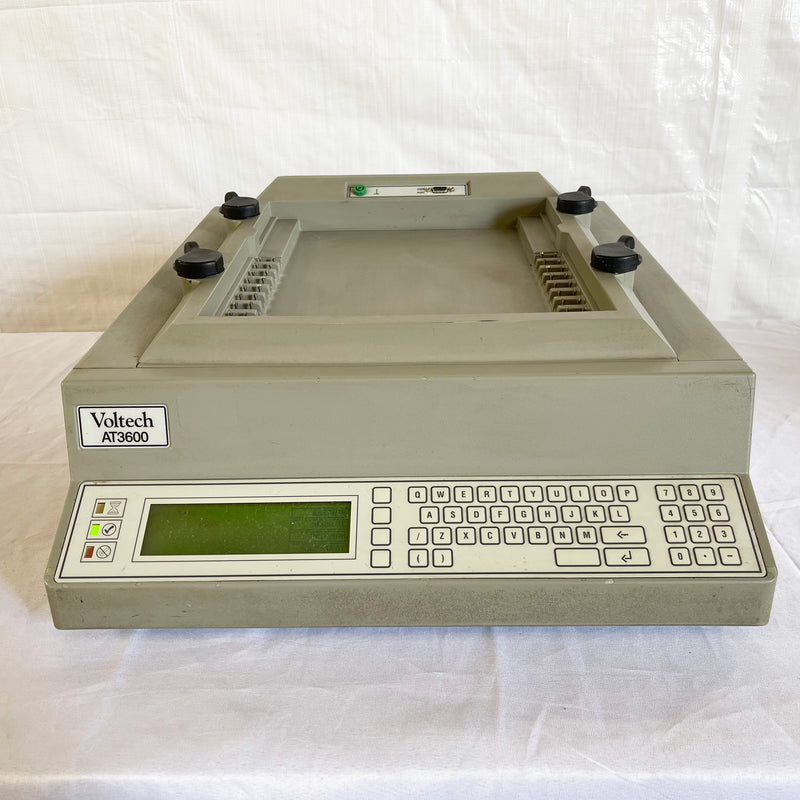

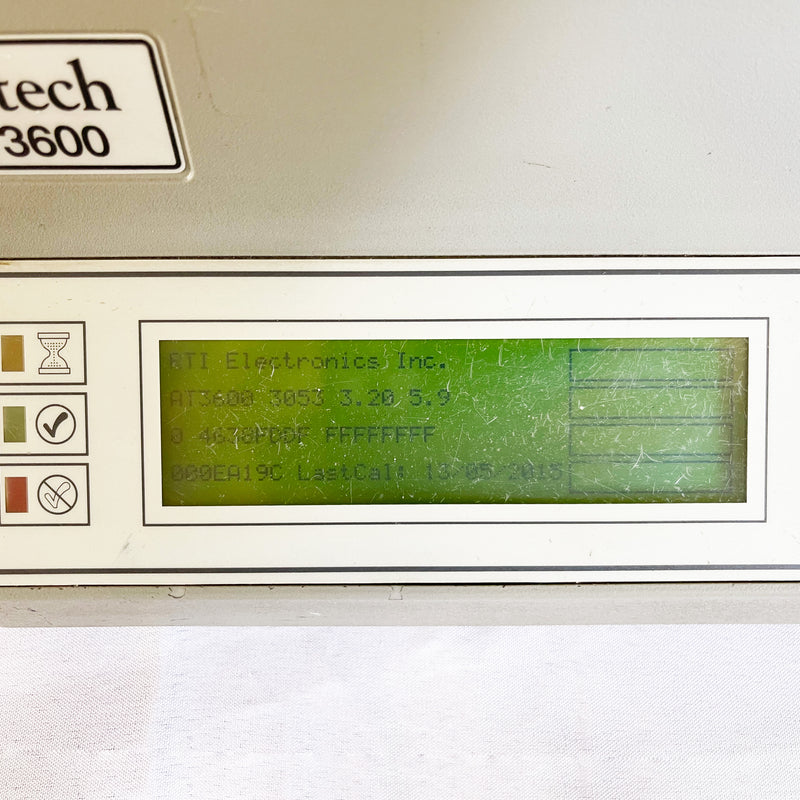

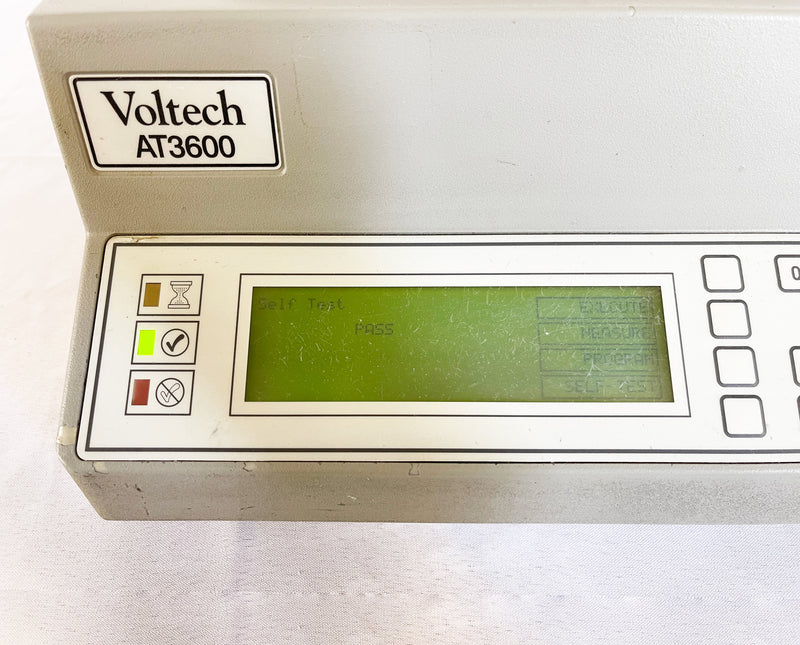

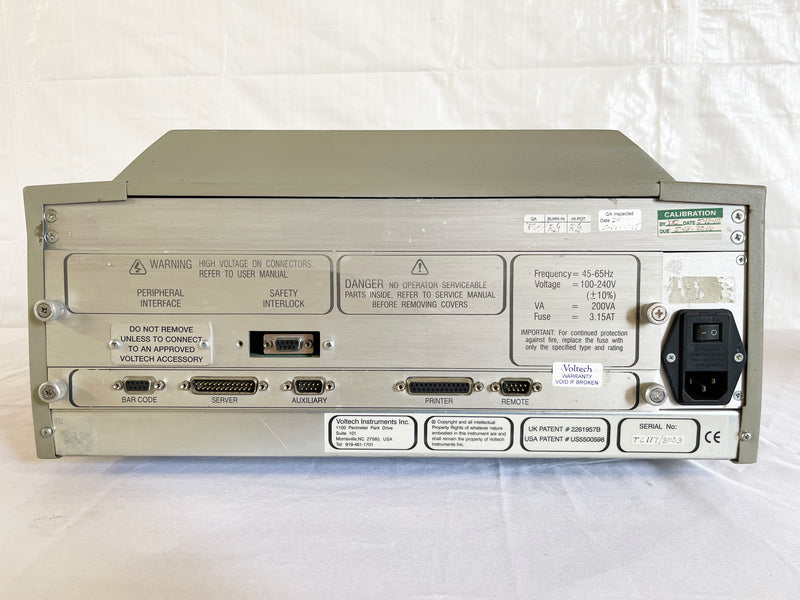

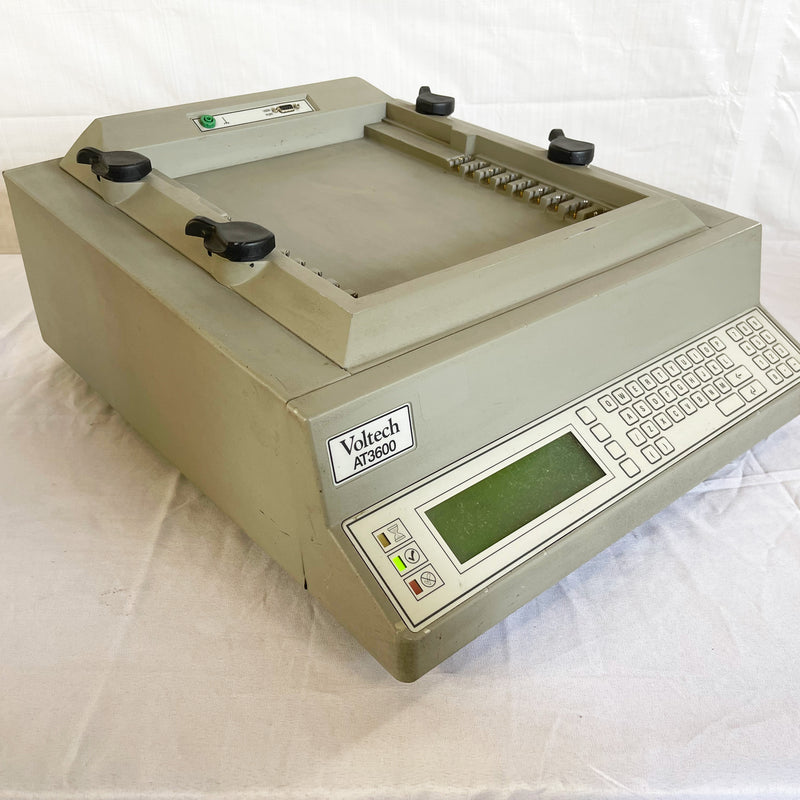

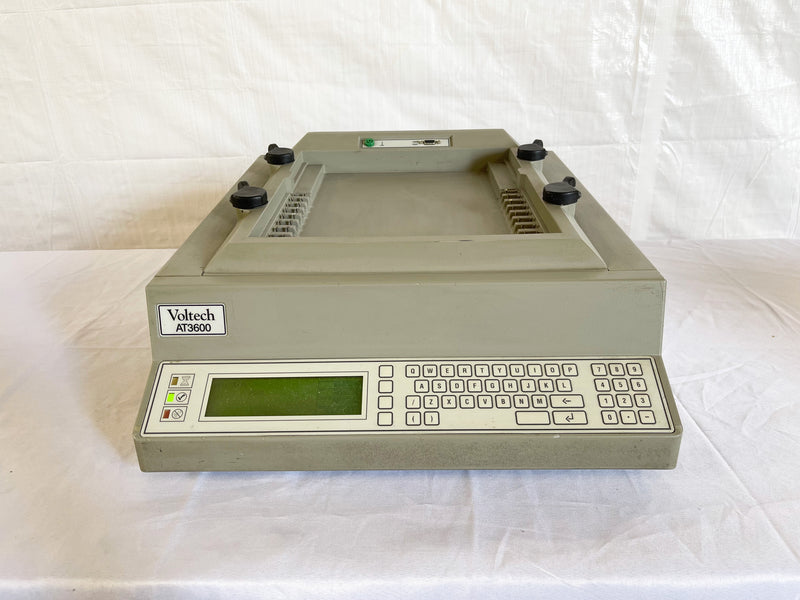

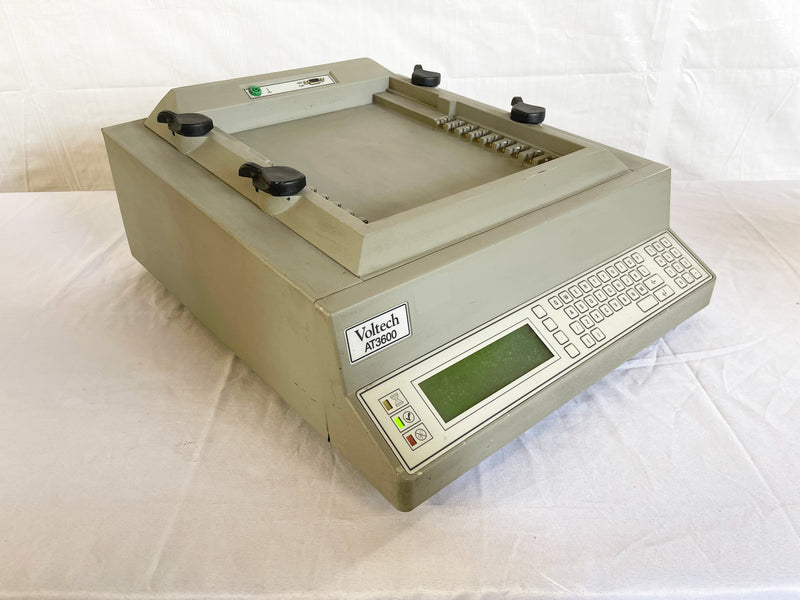

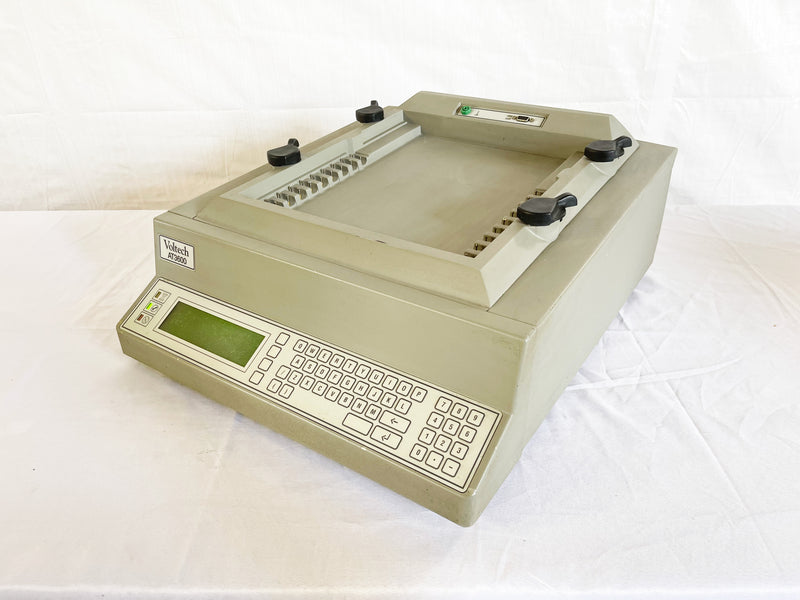

Voltech AT 3600 Automatic Transformer Tester
Programs:
R – Winding Resistance
LS – Series Inductance
LP – Parallel Inductance
QL – Q Factor
RLS – Equivalent Series Resistance
RLP – Equivalent Parallel Resistance
LL – Leakage Inductance
C – Capacitance
TR – Turns Ratio
MAGI – Magnetizing Current
VOC – Open Circuit Voltage
IR – Insulation Resistance
LSB – Series inductance with bias
LPB – Parallel inductance with bias
Z – Winding Impedance
TPL – Turn Ratio from Inducatance
ILK – Leak Current
WATT – Wattage
SURG – Stress Test – Surge
RLOS – Return Loss
ILOS – Insertion Loss
LBAL – Longitudinal Balance
GBAL – General Long Balance
PHAS – Interwinding Phase
ANGL – Impedance Phase Angle
D – D Factor
LVOC – Low Open Circuit Volts
ZB – Winding Z with Bias
LSBX - Series L with ext bias
LPBX – Parallel L with ext Bias
ZBX – Z with ext Bias
